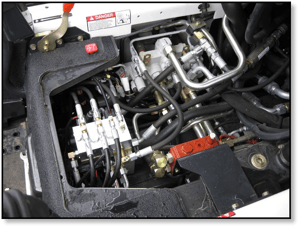

Hydraulic systems are vital to your compact equipment, including SSLs, CTLs, and mini excavators. Hydraulic hose fittings, including those that connect final drives to your system, are key components that ensure the efficient transfer of hydraulic fluid and power.

Whether you're a seasoned professional or just starting, mastering the knowledge and skills associated with hydraulic hose fittings is important. This Shop Talk Blog guide covers everything you need to know, from understanding the types of hydraulic hose fittings to best practices for installation, maintenance, and troubleshooting.

Here are a few other Shop Talk blog posts you might find of interest:

• Causes of Hydraulic Hose Failure
• Guide to Hydraulic Hose Failure


Understanding Hydraulic Hose Fittings

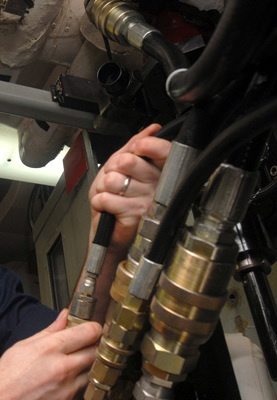

Hydraulic hose fittings connect hoses to other components within a hydraulic system. They provide a secure, leak-free connection that can withstand high pressures and demanding operating conditions. A poorly chosen or installed fitting can lead to system inefficiencies, costly downtime, or even catastrophic failures.

Basic Types of Hydraulic Hose Fittings

Hydraulic hose fittings come in various shapes, sizes, and materials to meet the needs of the many different types of hydraulic systems. Here are some of the most common types and their applications:

• Straight Fittings: These linear fittings are ideal for connecting hoses in straight-line configurations.
• Elbow Fittings: Featuring a 45-degree or 90-degree angle, elbow fittings are perfect for connecting hoses in tight spaces or when hoses need to change direction.
• Tee Fittings: These T-shaped fittings allow fluid to branch off into two or more directions, which is essential for systems requiring fluid distribution.
• Cross Fittings: Similar to tee fittings, cross fittings have a "+" shape and enable fluid to flow in multiple directions simultaneously.
• Flange Fittings: These fittings feature a flat surface with bolt holes, allowing hoses to securely connect to components using bolts, often in high-pressure applications.

Selecting the Right Hydraulic Hose Fittings

Choosing the right fitting is more than just making sure the size is right -- there are several factors to consider if you want to ensure compatibility and performance:

1. System Pressure: Fittings are rated for different pressure levels. Always select fittings that can handle your system's maximum operating pressure.
2. Material Compatibility: Fittings are made from steel, stainless steel, or brass. Ensure the material is compatible with the hydraulic fluid used in your system.
3. Hose Type: Match the fitting type to the hose. Engineers often design hoses and fittings to work together as part of a specific system.
4. Environmental Factors: When selecting fittings, consider the operating environment, including temperature, moisture, and potential exposure to corrosive substances.
5. Application Requirements: What does your application need? Flexibility, vibration resistance, or compact designs?

Installation Techniques

Proper installation leads to a leak-free and secure connection. Follow these industry best practices to achieve a reliable assembly:

• Cut the Hose Accurately: Use a sharp hose-cutting tool to cut the hose to the desired length, ensuring a clean, straight edge.
• Clean the Hose and Fittings: To prevent contamination, remove debris, dust, or oil from the hose and fittings.
• Select the Right Tools: Use the correct crimping machine or assembly tools recommended by the fitting manufacturer.
• Respect Manufacturer Guidelines: Follow the manufacturer's instructions, including requirements for torque and crimping guidelines.
• Inspect the Connection: After assembly, inspect the connection for proper alignment, tightness, and any signs of potential issues.

Maintenance and Troubleshooting

Regular maintenance and careful troubleshooting contribute to the long-term performance of your hydraulic hose fittings. Inspection is important for maintenance. You should regularly inspect fittings and lines for signs of natural wear, such as corrosion, cracks, or deformation. Also, look for hydraulic fluid leaks around fittings, which may indicate improper installation or wear.

There is also preventative maintenance for hydraulic fittings, which is pretty simple -- and starts with periodically checking and tightening fittings. They can loosen due to vibration or temperature changes. And remember to immediately replace fittings showing significant wear or damage to avoid system failures.

Now let’s talk about some common (and very problematic) issues. If you notice leaks, check for loose fittings, damaged O-rings, or incorrect installation. If low pressure is a problem, inspect fittings for blockages or improper sizing that could be restricting fluid flow. Remember that repeated fitting failures may indicate incorrect material selection or excessive system pressure.

Final Tips

Don't underestimate the importance of quality crimping tools, hose cutters, and other gear -- they can greatly increase the accuracy and reliability of your installation and repairs.

Follow safety protocols -- they exist for a reason. This means you should always emphasize safety by wearing PPE, depressurizing systems before commencing work, and not checking for leaks with your bare hands.

Record Your Work: Keep thorough documentation of fittings, installations, and maintenance schedules to monitor system performance over time. This can reveal the presence of ongoing problems that can be fixed.

Conclusion

Hydraulic fittings are an important part of your skid steer, mini excavators, or compact track loader. Knowing the basics of hydraulic fittings will help you keep your equipment up and running, and better make repairs when something goes wrong.
